Sony 1/3 Inch Super HAD CCD Infrared Dome CCTV Color Camera

• Item Number: MYBE81

---

• Product Type :
  Sony 1/3 Inch Super HAD CCD Infrared Dome CCTV Color Camera


---

• Sample Price : USD $ 35.95

• 5PCS Wholesale: USD $ 179.99

• Retail | Wholesale

---

• Condition:
  Brand New & High Quality

---

• Location&Warranty&Shipping:


---

We are the agent of CCTV Color Camera, providing high quality day and night monitoring device products for you.

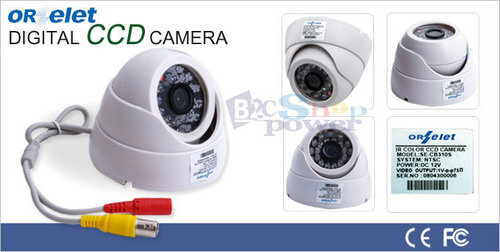

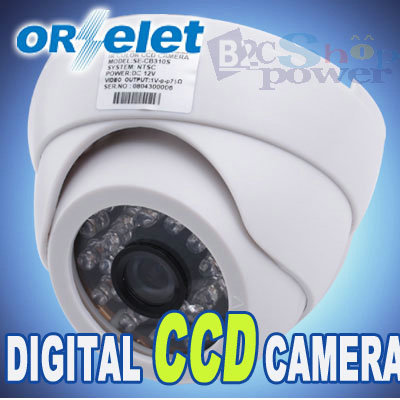

24 LED IR Infrared Dome CCD Security CCTV Color Camera


Functions:
Sony 1/3" HAD CCD sensor
3.6 mm wide angle lens
Built-in light sensor, the 24 infrared LED auto activate in darkness
Auto backlight compensation
Auto tracking white balance
Directional dome, rotatable camera head, easy to install and operate

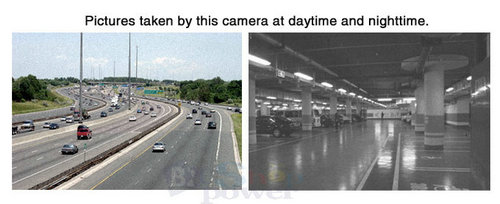

Professional day and night monitoring device
Passed CE,FCC certificates

Specifications:
Material: plastic
Signal format: NTSC
Effective pixels: NTSC 510 (H) X 492 (V)
Horizontal resolution: 420 TV lines
Electronic shutter speed: NTSC 1/60 - 1/100,000 sec
Signal to noise ratio: 48dB
Video output: 1Vp-p / 75
Gamma correction: 0.15
Infrared LED quantity: 24
Infrared coverage: 15 m
Power: DC 12V (not included)
Operating temperature: -10°C ~ + 50°C
Outline dimension: base diameter (94 mm), height (72 mm)
White balance: Auto Tracking White Balance
Backlight compensation: ON / OFF Switchable v Electronic shutter control: EE / AI Switchable


FAQs:
1. Super HAD CCD sensor is designed to improve brightness sensitivity by improving light utilization efficiency
2. SONY vs. Sharp CCD - In surveillance equipments, these two branded CCD sensors are the most commonly used in the market. SONY branded CCD had been shown to provide sharper image resolution, better performance in low light conditions. SONY branded sensors is also more expensive.
3. 3.6mm lens vs. 6mm lens - Common camera (cheaper) uses 6mm lens. A 3.6mm lens provides a much wider view for better coverage of surveillance area.
4. 1/3" vs. 1/4" CCD sensors - 1/3" CCD sensors are able to reproduce a wider and larger area coverage due to the larger sensor. It is also mored expensive.

1 X 3.6 mm 24 LED dome camera
1 X User manual
