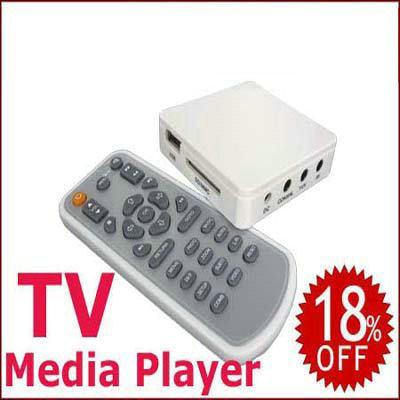

USB HDD SD MMC Card Reader Media Player to TV HDTV New

• Item Number:USB HDD SD MMC Card Reader Media Player to TV HDTV

---

• Product Type : HDMI Cables & Adapters™©


---

• Sample Price : USD $33.94

• Retail | Wholesale

---

• Condition:
  Brand New & High Quality

---

• Location&Warranty&Shipping:

•

---

This multi-media player is specially designed for the person who want to display digital photos, video and files in your USB flash disk, USB HDD, MP3, SD/MMC card (32G MAX) on TV or monitor without PC in high definition. It is plug-and-play and supports lots of formats, such as JPEG, M-JPEG, BMP, TIFF, PNG picture formats, MP3, WMA audio formats and RM, RMVB, AVI, MPEG1 (VCD), MPEG2 (DVD), MP4 video formats.

Product Features
USB 2.0 high speed input, OTG, USB flash drives or USB hard disk (320G MAX)can be connected to the player directly.
SD/MMC card supported(32G MAX).
Hot-plugging is supported.
Digital Coaxial 3.5mm audio and AV (Composite video, audio R/L), YUV (Component RGB Ypbpr) video output.
Supported audio formats: MP3, WMA (code rate 32-38Kb/s).
Music/movie repeat mode; Repeat one, repeat all.
Supported photo formats: JPG, BMP, TIFF, PNG, GIF.
Slide speed of picturs: 3s, 5s, 15s, 1 min, 15 min, 1 hr.
Picture display mode: Random, fading...
Supported video formats: RM/RMVB (code rate 1.6Mb/s, video size 1024*576), MP4 (.avi, include Divix3-6, Xvid, code rate 4.5Mb/s, resolution up to 720*576), DVD (.vob, mpeg, code rate 10M, resolution up to 720*576), VCD (DAT, .mpg, .MPEG, full code rate).
NOTE: avi-only support resolution up to 720*576.
Supported external subtitles formats: *.SMI, *.SRT, *.ASS, *.SSA.
Supported file system formats: FAT16, FAT32, NTFS.
Display mode: 16:9, 4:3.
TV system: PAL composite, NTSC composit, PAL interlace, PAL progressive, NTSC interlace, NTSC progressive, HD mode (If your TV supports Component Video, please set the player as HD mode).
Language selection: Complicated Chinese, English.
With 15-screen picture browsing mode.
With IR receiver / power indicator.

Connection with TV
Composite Video Connection:
Plug the offered A/V cable (red-white-yellow) into the TV's Composite Video, Audio R/L ports, then Plug the other end of the cable into player's AV socket (Be sure the Composite Video cable plugged into the TV ports with corresponding colors).
Component Video Connection:
Plug the Component Ypbpr cable (red-blue-green) to the TV'scorresponding ports, and plug the other end into the player's YUV socket (Be sure the TV set to the corresponding video display mode with video source input. In case TV shows no signal, check if the right display mode, and the player is the right output mode).
Component Video output (HD mode) is recommended if the TV supports.

Remote Control Instructions
GOTO
Preess "GOTO" button, the menu pops up automatically, and the cursor is located at the function of "time". Set time by pressing the "left/right" ("L/R") button.
SUBTITLE
Start/Turn off subtitle by 2 classes (It is applied for videos with subtitle).
COMB
Play bsackground music while displaying pictures of slide.
RESET
Back to default setting under the main menu (Default setting: NTSC Composite Video output).
VIDEO
Switch between Composite Video output and Component Video output of the TV, the player should swithed to the correponding output.

1 x Media Player
1 x Remote Control
1 x YUV Cable
1 x AV Cable
1 x AC Adapter
1 x User Manual
