9mm flexible borescope Endoscope Inspection Camera DVR

    We are professional enterprise manufacturer & supplier of a complete range of dvbt.Our top quality 9mm flexible borescope Endoscope Inspection Camera DVR are based on years of research and development and under the guideline of ISO9001-2000 quality system and CE and UL certified.


9mm flexible borescope Endoscope Inspection Camera DVR
100% satisfaction guaranteed!
  • Item Number:9mm flexible borescope Endoscope Inspection Camera DVR

  • Product Type : Pumps & Plumbing™©

  • Sample Price : USD $149.81
  • Retail | Wholesale

  • Condition:
    Brand New & High Quality

  • Location&Warranty&Shipping:

9mm flexible borescope Endoscope Inspection Camera DVR Description :


Allows for easy visual inspections in hard to reach areas. Lightweight,
handhold design for easily find, diagnose and solve problems
Mini water-proof camera with 1m(3 feet) flexible extended tube

Night Vision Range:1.5m(4.5 feet)
Waterproof Level: IP67 with Underwater
2.5" TFT-LCD wireless monitor with rechargeable Li-battery
3 useful accessories includes: hook, mirror and magnet
Operating Temperature: -10°C to +50 °C/+14°F to +122°F
Operating Humidity(Max): 15 to 85%RH

Camera specifications:

Image Sensor: CMOS
Total Pixels: 649×480
Horizontal View Angle: 45 degree
Transmission Frequency: 2468MHz
Minimum Illumination: 0 Lux
Modulation Type: FM
Bandwidth: 18MHz
Power Supply: 4 x AA
Unobstructed Effective Range: 10m
Len Diameter: 9mm
Waterproof Capacity: IP67(only for imager head)
Dimensions (W x D x H): 186 x 145 x 41(mm) (Exclude Flexible Tube)
Weight(about): 450g

Monitor parameters:

LCD Screen Type: 2.36?TFT-LCD
Effective Pixels: 480 x 240
Video System: PAL/NTSC
Transmission Frequency: 2468MHz
Exterior Supply Voltage: 8V-24V DC
Consumption Current (Max): 490mA
Video Output Level: 0.9-1.3VP-P@75ohm
Receiving Sensitivity: <=-85dBm
Dimensions (W x D x H): 100 x 70x 30(mm)
Weight(about): 140g

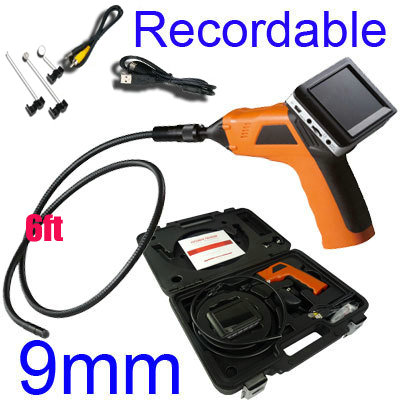

9mm flexible borescope Endoscope Inspection Camera DVR Package included:


1 x Camera
1 x Hnadle
1 x LCD Monitor
1 x Power Adapter
1 x Video Output Cable
1 x USB Cable
1 x CD-ROM
1 x Hook
1 x Magnet
1 x Mirror
