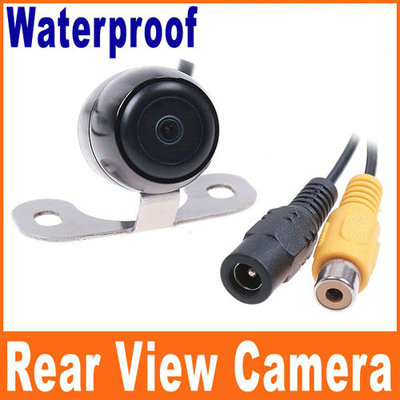

150 Night Vision wide angle Waterproof Car Rear View Reverse Backup Camera

    We are professional enterprise manufacturer & supplier of a complete range of dvbt.Our top quality 150 Night Vision wide angle Waterproof Car Rear View Reverse Backup Camera are based on years of research and development and under the guideline of ISO9001-2000 quality system and CE and UL certified.


150 Night Vision wide angle Waterproof Car Rear View Reverse Backup Camera
100% satisfaction guaranteed!
  • Item Number:150 Night Vision wide angle Waterproof Car Rear View Reverse Backup Camera

  • Product Type : Car Reverse Backup Radar™©

  • Sample Price : USD $21.93
  • Retail | Wholesale

  • Condition:
    Brand New & High Quality

  • Location&Warranty&Shipping:

150 Night Vision wide angle Waterproof Car Rear View Reverse Backup Camera Description :


This mini car rear view camera is applicable to variety of vehicles: car, truck, RV, etc and it helps to avoid incidents and ensure your safety.

Features:
Anti fog glass.
Low illumination level, it can work within 3 meters at night and other dark environments.
CMOS imaging sensor.
Support NTSC video system.
High grade of waterproofing: IP66.
High-definition and 150 degree wide viewing angle.
Applicable to variety of vehicles: car, truck, RV, etc.
Easy to install.
Its simple and modest design and mini size won't draw any attention.
It helps to avoid incidents and accidents abrasion well.

Specifications:
Image Sensor: CMOS 1/4 MT9V125 or PC1030, color
TV system: NTSC
Horizontal Resolution: 420 TV lines
Effective Pixels: NTSC:510(H)x 492(V)
Minimum Illumination: 0.5 Lux
Lens: 13.5mm
View Angle: 150 degree
Sync. System: internal
S/N Ratio: >48db
Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
Video Output: 1.0Vpp, 75Ohm
White Balance: Auto
Power: DC 12V
Current Consumption: 90mA
Operating Temperature: -20 to + 70C, 95% RH maximum
Storage Temperature: -40 to + 100C, 95% RH maximum
Water-proof: IP66
Image Reverse: Left-right mirror
Video Cable Length: 6m
Power Supply Cable Length: 1.5m
Camera size: 1.9 * 2.4cm
Camera Weight: 33g
Package size: 16.4 * 9.9 * 5cm
Package weight: 173g

Installation:
Connect the yellow video output connector to terminal display device.
Connect the black power input connector to power output device.

150 Night Vision wide angle Waterproof Car Rear View Reverse Backup Camera Package included:


1 x Car Rear View Camera
1 x Video Cable
1 x Power Cable
2 x Screw (for bracket mount)
